6 Meters - Ham Radio; RCI-5054DX-100 AM-FM-SSB-CW 6 Meter Mobile Radio
Topic Started: Saturday, 16. July 2011, 13:49 (922 Views)
Mark in Essex
Member Avatar
26 Charlie Tango 037

First time i have seen this :o

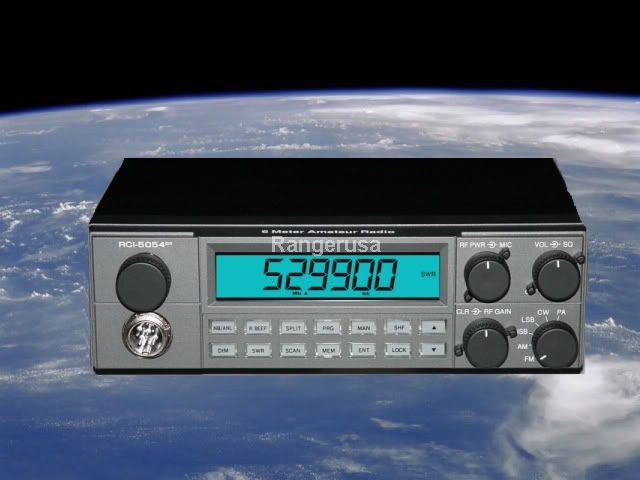

Posted Image


RANGER USA
[][img][/img][/url]

https://www.youtube.com/user/26TANGOMIKE037/videos



Nembutol numbs it all
But I prefer alcohol
Offline Profile Quote Post Goto Top

Fixerman
Member Avatar
108 Charlie Tango 300

Any details mark? does it only cover 6m?

fm
MM0WAX
Offline Profile Quote Post Goto Top

Fixerman
Member Avatar
108 Charlie Tango 300

Answered my own question



RCI-5054DX-100 Specifications
General


Frequency Range
50.000 - 54.000 MHz

Tuning Steps
1 MHz, 100 KHz, 10 KHz, 1 KHz, 100 Hz

Emission
USB, LSB, CW, AM, FM

Frequency Tolerance
0.005%

Frequency Control
Microprocessor / Phase-Locked-Loop Synthesizer

Frequency Stability
0.001%

Operating Temperature Range
-10 ºC to + 50 ºC

Meter Function
RF Output, RX Signal Strength, Modulation, SWR
(LCD Display Indicates Relative Values)

Antenna Impedance
50 W

Input Voltage
13.8 Vdc

Microphone
400 W Dynamic PTT - 6 Pin

Size (W x D x H)
5054DX-100: 7 3/4" x 9 3/4" x 2-3/8"

Weight
5054DX-100: 5 lb 13 oz


Transmitter


RF Power Output
5054DX-100: 50 Watts RMS: CW / AM / FM
100 Watts: SSB (PEP)

Current Draw at full power
12 Amps

Modes
USB, LSB, CW, AM, FM, PA

CW Keying
Semi break-in

Carrier Suppression
- 50 dB

Spurious Emission
- 60 dB

Antenna Connector
UHF Type, 50 W


Receiver


Sensitivity
AM / CW: 0.5 µV for 10 db SINAD
FM: 0.25 µV for 12 db SINAD
SSB: 0.15 µV for 10 db SINAD

AGC Figure of Merit
SSB/CW/AM: 80dB at 50mV for a 10dB change in audio output

Selectivity
- 55db

Image Rejection Ratio
- 65 db

Audio Output Power
2.5 Watts @ 10% THD into 8 W


fm
MM0WAX
Offline Profile Quote Post Goto Top

Deleted User
Deleted User

I think it would draw more on FULL (100 watt) output power than 12A.

Could be a popular radio if priced right. Funny that it still as a PA facility :clap:
Quote Post Goto Top
