Firestik 5ft; ANTENNAS
Topic Started: Wednesday, 2. February 2011, 11:28 (1,476 Views)
Mark in Essex
Member Avatar
26 Charlie Tango 037

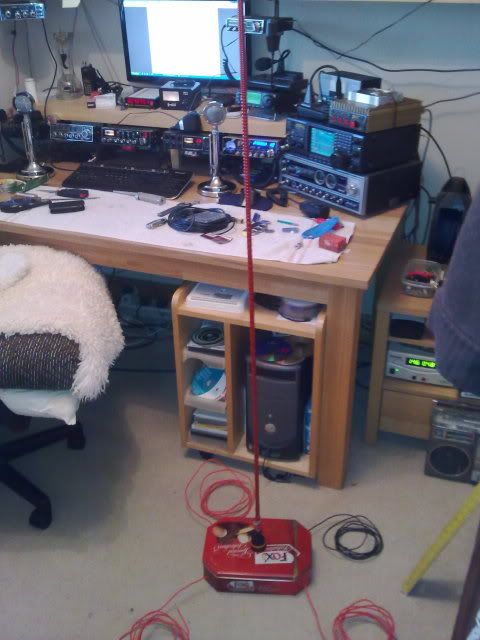

Decided to add to my antenna farm in the loft at the weekend...went proper old skool :P
Biccy tin...Four 9ft wires ...mount and antenna...Job done :)
Posted Image

Works well for local, not tested on DX (cos there aint any on11 :( at the mo). is about down 1.5 S points on the 9ft Shaky in the loft, both antenna tips at the same height ......It has replaced the Bazooka/Excalibur POS.... :D
[][img][/img][/url]

https://www.youtube.com/user/26TANGOMIKE037/videos



Nembutol numbs it all
But I prefer alcohol
Online Profile Quote Post Goto Top

SussexRob
Member Avatar
26 Charlie Tango 424

That's basically what I am havinf to build for the flat. It'll be put up and taken down from being mounted on the window sill.
CB Handle - SussexRob

26-CT-424/26FB1986


Think you know scouting: Take a closer look
Offline Profile Quote Post Goto Top

Deleted User
Deleted User

http://www.youtube.com/watch?v=BnDaInHUbr8 Firestik video ;)
Quote Post Goto Top

Rizz
Member Avatar
26 Charlie Tango 301
Nice do the wires make much difference ?, also like the seat cover :D oh and that burner on top of the icom
Edited by Rizz, Wednesday, 2. February 2011, 20:11.
FT7900 , , Microset 27/200 wideband amp, , Adonis 308, , MFJ 949e, President Lincoln, , Ranger Superstar 3900.
Offline Profile Quote Post Goto Top

Scottydog
Member Avatar
26 Charlie Tango 441
Rizz
Wednesday, 2. February 2011, 20:08
Nice do the wires make much difference ?, also like the seat cover :D oh and that burner on top of the icom
Thats not a burner its a nuclear reactor!! B)

SD :dog:
Posted Image


http://www.sunderlandusedoil.co.uk


26CT441@charlietango.co.uk

Member of H.A.R.C. (Houghton le Spring amateur radio club)
Member of N.E.A.R.S (North East Amateur Radio Society)
Offline Profile Quote Post Goto Top

Mark in Essex
Member Avatar
26 Charlie Tango 037

Rizz
Wednesday, 2. February 2011, 20:08
Nice do the wires make much difference ?
A HUGE difference Jason (without them it would not work and a decent VSWR would not be achievable)...have them sloping at about 30 degrees at present, will make some tests and then will be sloping them down as close to 45 degrees as i can and make a few further tests.

As mentioned before about 1.5 s points down on the 9 footer but the RX is so much cleaner and clearer over distance...makes me think the 9 ft is just dragging in 2 spoint of rubbish/noise....go figure? :o
[][img][/img][/url]

https://www.youtube.com/user/26TANGOMIKE037/videos



Nembutol numbs it all
But I prefer alcohol
Online Profile Quote Post Goto Top

Ranger77
No Avatar
26 Charlie Tango 770

hi there
this is the best i could do with my 5" firestick.....cant go outside so done this in the loft...
a 2x3 foot aluminum bakers tray, a 8 foot tripod spread out over it, and 4 nine foot wires from the corners of the tray...
looks awfull but the swa is down to 1;1, i do use a matcher also....

hope i put the right photo up.....
ADMIN - Photo resized to speed-up loading, and included in post
Posted Image
Attached to this post:
Attachments: 084.jpg (1.36 MB)
Attachments: fstk5.jpg (84.44 KB)
Offline Profile Quote Post Goto Top

VoG
No Avatar

ranger77
Saturday, 19. February 2011, 21:35
swa is down to 1;1, i do use a matcher also....
There's no point in using a Matcher on an 11m aerial TXing on 11m... It just introduces loss. The SWR should be good enough without a matcher.
Offline Profile Quote Post Goto Top

Mark in Essex
Member Avatar
26 Charlie Tango 037

Superb home brew Michael...excellent stuff mate, You say you use a matcher!!, What is the VSWR without it?...
[][img][/img][/url]

https://www.youtube.com/user/26TANGOMIKE037/videos



Nembutol numbs it all
But I prefer alcohol
Online Profile Quote Post Goto Top

Ranger77
No Avatar
26 Charlie Tango 770

hi there
the swr will go into the red (bad) when i use the bypass switch...the unit is a "HQ 2000" its a swr, power merer,match box,a two antenna switch unit.....ilove it as i move about from AM,fm,usb,lsb,and cw...i have got used to it and find it a fast unit to work with ....
Offline Profile Quote Post Goto Top
